| System Configuration |
| Processor |
Octa-core 2.0GHz high-performance processor |

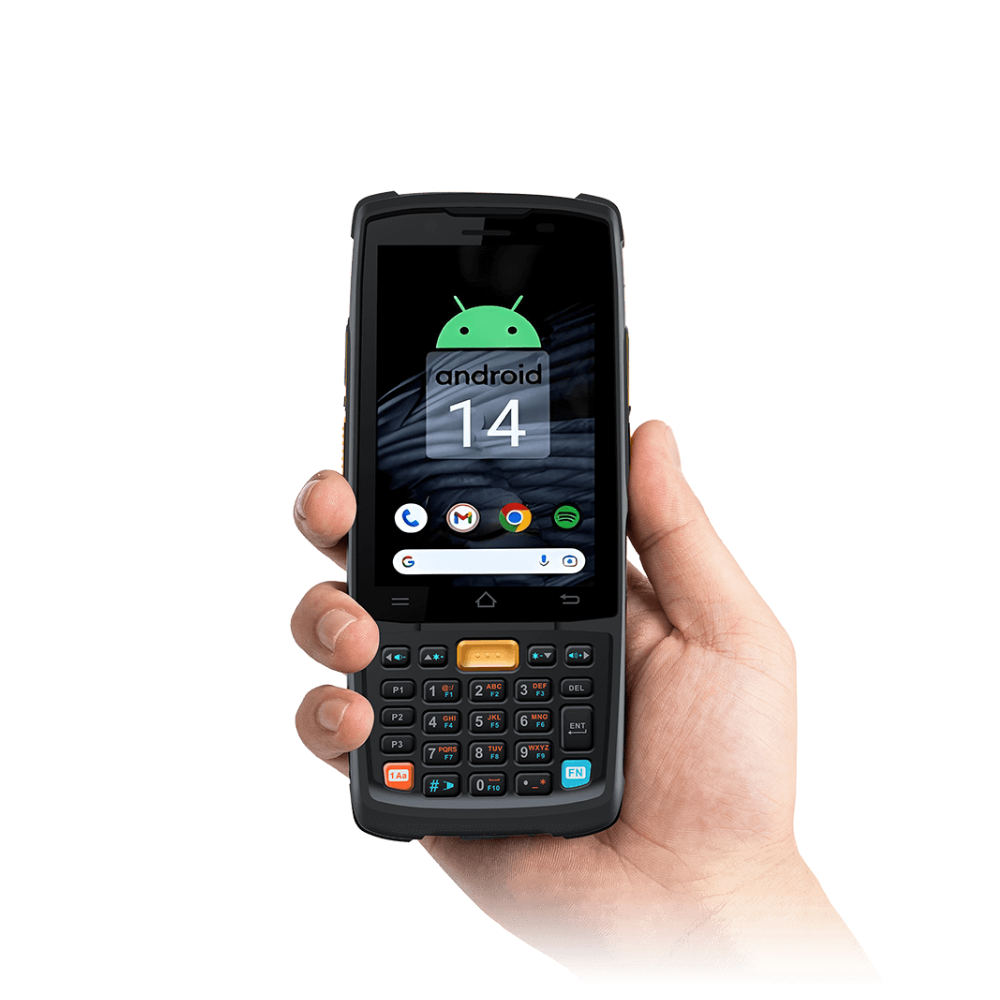

| Operating System |
Android 14.0 (GMS) |
| Memory (ROM + RAM) |
64GB+4GB (standard) |
| SIM |
Single SIM card |
| Expansion Slot |
Micro SD card (up to 512 GB) |
| Display Screen |
4-inch, resolution: 800*480 pixels |
| Touch Screen |
Industrial capacitive screen, support wet-hand operation/glove mode/multi-touch/gesture operation |
| Camera |
8MP rear camera, support auto-focus |
| Flashlight |
800mA flashlight |
| Keypad |
28 keypads: front key*24, side scan key *2, sidepower key*1,sidecustomkey*1 |
| Battery |
3.85V lithium battery, with 5000mAh, detachable, backup battery support |
| Audio |
Built-in microphone |
| Charging Method |
Type-C charging and pin port charging, support 18W fast charging |
| Reminder |
High power speaker/Vibration reminder/LED reminder |
| Vibrating Motor |
Built-in vibrating motor |
| Sensors |
G-sensor/Proximity sensor/Light sensor/Gyroscope/Geomagnetic sensor(optional) |
| Intercom Function (Optional) |
Support one-button PTT calls |
| Structure Parameter |
| Dimension (L*W*D) |
162mm*68mm*19mm
(the thickest part of tilt-angle version is 29.4mm) |
| Weight |
278g (Battery included) |
| Communication Transmission |
| WWAN (Network frequency) |
China & Eurasian version:
2G:B2/B3/B5/B8
3G:WCDMA:B1/B5/B8
4G:FDD-LTE:B1/B3/B5/B7/B8/B20 TDD-LTE:B34/B38/B39/B40/B41
American version:
2G:B2/B3/B5
3G:B1/B2/B4/B5
4G:B1/B2/B3/B4/B5/B7/B12/B17/B28A/B28B/B41/B66/ B71 |
| WWAN (Data service) |
GSM/GPRS/EDGE/UMTS/HSPA/HSPA+/WCDMA/TDD-LTE/FDD-LTE |
| WLAN Function |
Wi-Fi 802.11 a/b/g/n/r/ac (2.4G+5G dual-band Wi-Fi), support fast roaming |
| Bluetooth |
Bluetooth 5.0, support BLE |
| GPS |
GPS/AGPS/BDS/Galileo/GLONASS/QZSS |
| Environmental Parameter |
| Working Temperature |
-20°C – 60°C
*Do not charge under low temperature conditions for the safety concerns |
| Storage Temperature |
-40°C – 70°C (without the battery) |
| Humidity |
0 – 95% (no moisture condensation) |
| Drop Specification |
Multiple drops to concrete floor from the height of 1.5m |
| Roller Drop Specification |
1000 times of roller drops from a height of 0.5 meter |
| Ingress Protection |
IP65 |
| ESD Protection |
±15KV (air discharge), ±8KV (contact discharge) |

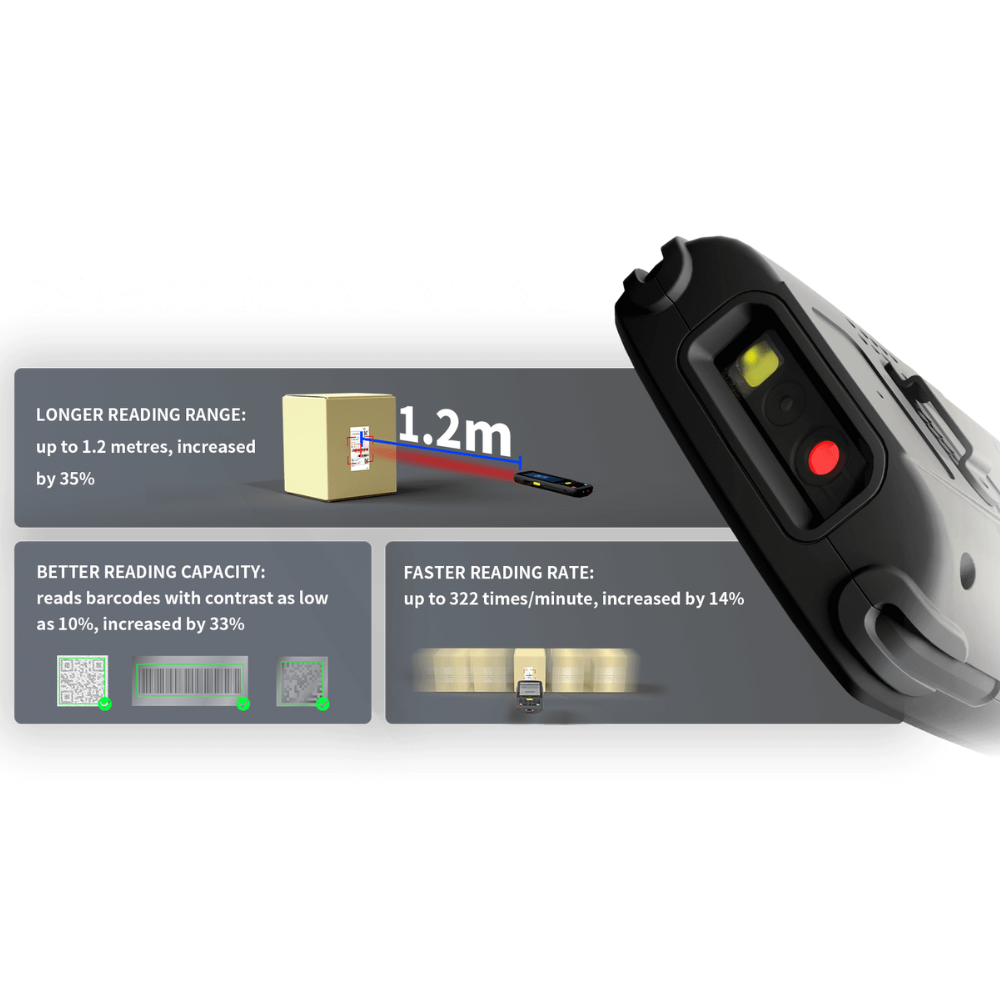

| Scanning Engine |
| Barcode Type |
It can scan one-dimensional / two-dimensional barcodes |
| Scanning Accuracy |
≧3.33mil |
| Scanning Angle |
Pitch: ±60°; Skew:±45°; Tilt:360° |
| View Angle |
Horizontal:44.3°，Vertical:28.4°，Diagonal:51° |
| Motion Error Tolerance |
8m/s |
| NFC (Optional) |
| Working Frequency |
13.56 MHz |
| Reading Distance |
Within 20 mm |
| Communication Protocol |
ISO14443A/14443B/15693 |
| Communication Interface |
| USB Interface |
Type-C (with headset function) *1 |
| OTG Interface |
Support |
| Development Support |
| Programming Language |
Java |
| Development API |
iScan API (Scanning Development Kits), Device API (Device Management/Configuration Development Kits), Android Standard Interface |
| Development Tool |
Eclipse/Android Studio |
| Accessories (More details in accessories guide) |
| Standard Accessories |
USB cable*1, power adapter*1, device-back strap*1, battery*1 |
| Optional Accessories |
Single charging cradle, bottom charger, 4-slot charging cradle, 4-slot battery charging cradle, fanny pack, hand strap, protective film，protective case |
