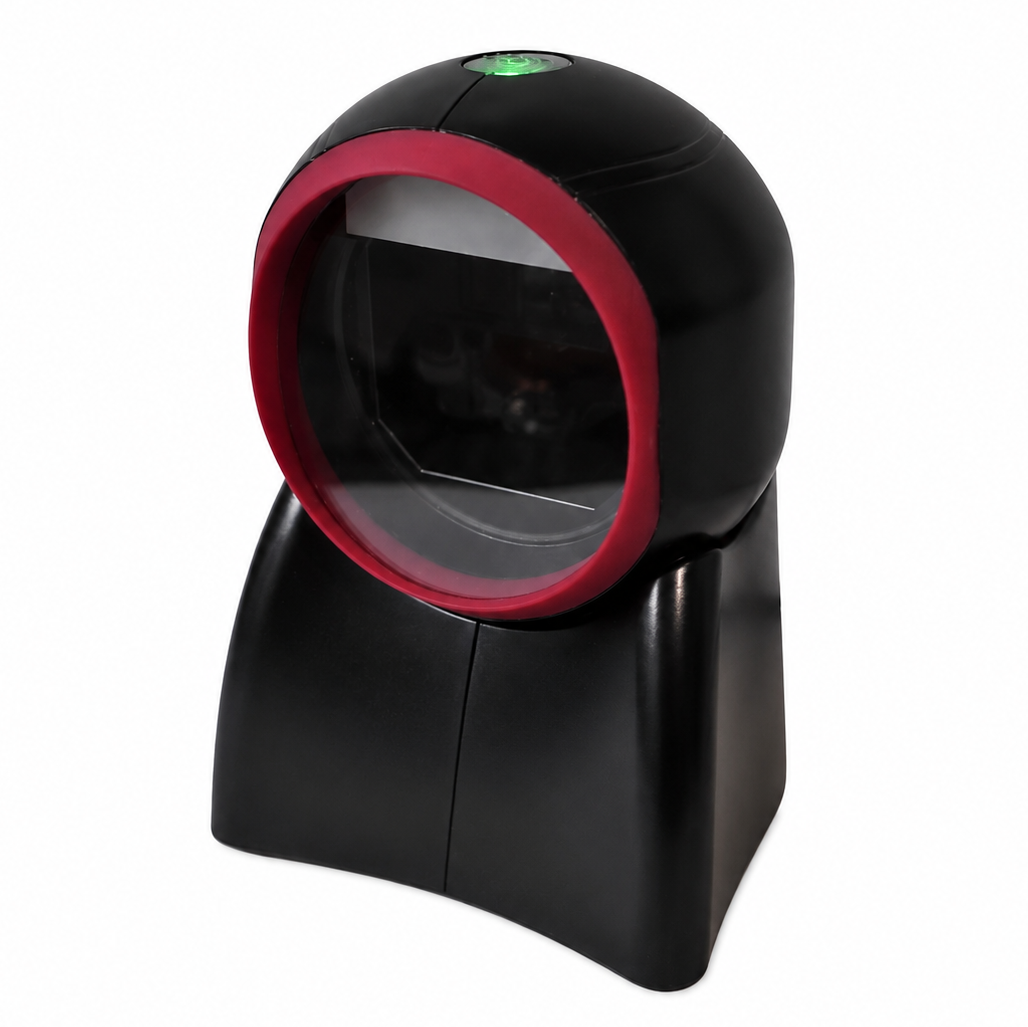

All ID OD7100E 2D Omni Directional Barcode Scanner

  • Scanner Type: Data Imager
  • Connectivity: Corded (USB)
  • Form Factor: Presentation
  • Scanner Capability: 1D Barcodes, 2D Barcodes, QR Codes & Barcodes On Screen
  • Includes: USB Cable

Download Brochure

Send Enquiry

Make scanning a breeze with the revolutionary All ID OD7100E 2D Omni Directional Barcode Scanner. This device eliminates the frustration of aligning barcodes, allowing you to quickly and accurately capture data from any angle. With its omnidirectional scanning capabilities, you’ll boost productivity and minimize wasted time.

Key Features:

  • Omnidirectional scanning from any orientation
  • Rapidly reads 1D, 2D, and PDF417 barcodes
  • Durable construction withstands up to 50 drops to concrete
  • Plug-and-play setup for fast deployment

This innovative scanner is perfect for retail, healthcare, manufacturing, and other industries that rely on barcode scanning. Its omnidirectional scanning field allows you to rapidly capture barcodes without precise alignment, making it ideal for scanning items on shelves or conveyors. Workers can use the OD7100E while standing or sitting without compromising performance.

With superior scanning speeds, expansive scanning range, and unmatched ruggedness, the All ID OD7100E will become your go-to barcode scanning solution. Bring simplicity and speed to your barcode scanning tasks with this cutting-edge device.

Scan Performance
Scan mode Omni directional 2D Image scanning
Alarm mode LED light alarm, Buzzer alarm
Read speed 2500 times/sec
Resolution SXGA-W (W 1280* H 1024) Ratio (5:4)
Scan angle Horizontal ±55°, Vertical ±37.5°
Scan depth of field 4mil (Code 39) 20~120mm
13mil (UPC/EAN) 20~210mm
15mil (PDF417) 20~180mm
15mil (QR code) 30~130mm
Revolve angle Roll:0-360°、Pitch:±60°or greater、Yaw:±55°or greater
Barcode type Australian Post, Aztec, BPO, Canada Post, Codabar, Codablock, Code 11, Code 39, Code 93, Code 128/EAN128, DataMatrix, Dutch Post, EAN.UCC Composite, Interleaved 2 of 5, Japan Post, Matrix 2 of 5, MaxiCode, MicroPDF417, MSI Code, PDF417, Planet, Plessey Code, Postnet, QR code, RSS, Standard 2 of 5, Telepen, TLC 39, UPC/EAN, etc
Electrical
Voltage DC+5V±5% or +3.3V±5%
Current 200mA (stand by); 420mA (operation)
Interfaces USB (Drive Free), USB Virtual
RS232 (Install Drive), RS232(Drive Free)
Light level Wavelength: 675nm±3nm Infrared LED
Environmental
Operating temperature -20°C ~ 60°C
Storage temperature -40°C ~ 70°C
Humidity 5% to 95% (Non-condensing)
Drop Designed to withstand 1.2m drops
Physical
Dimensions (LxWxH) 110mm × 124mm × 152mm
Weight 450g
Color Black
Material PC
