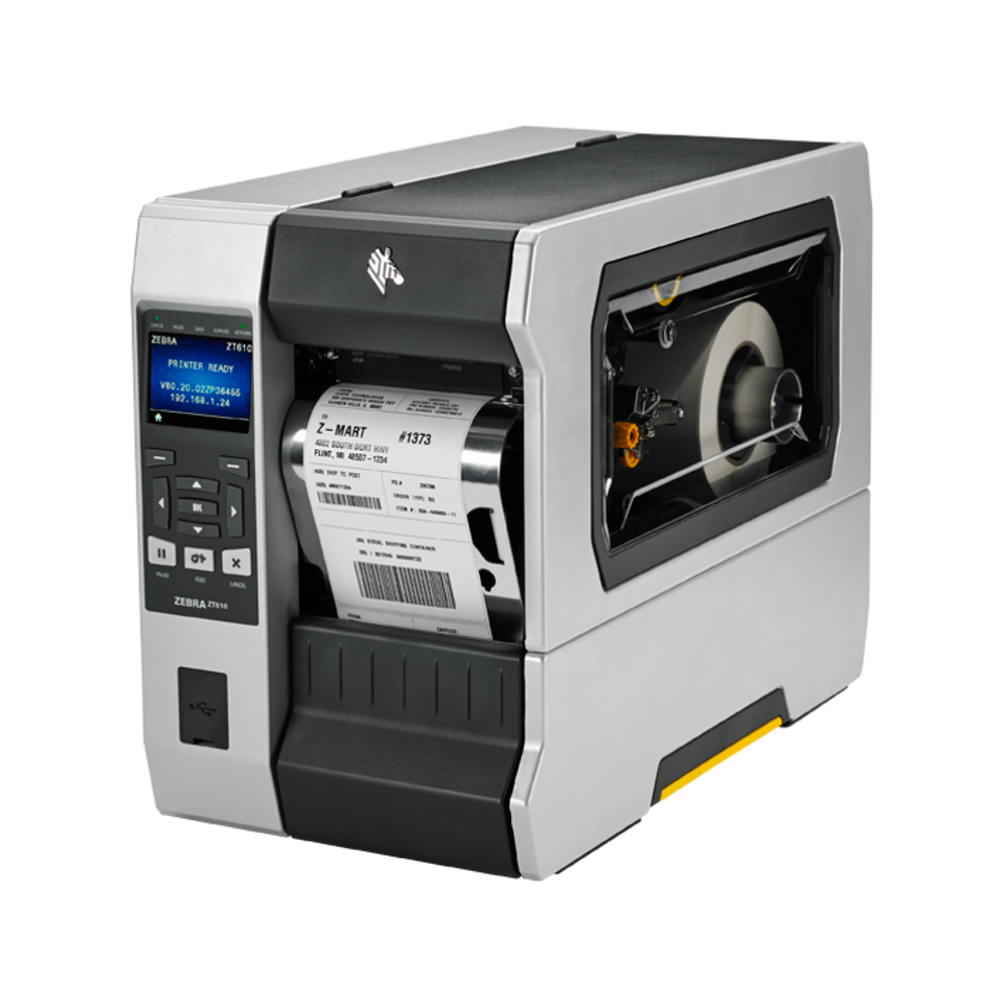

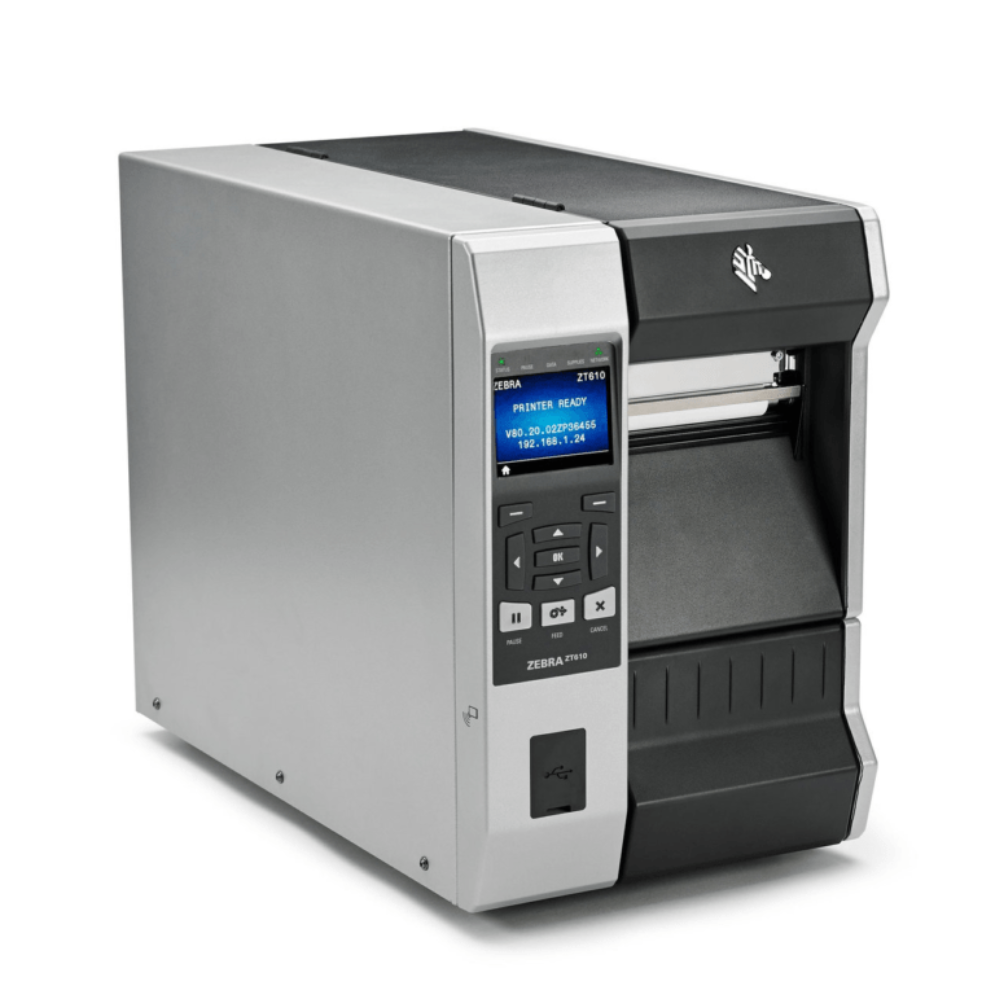

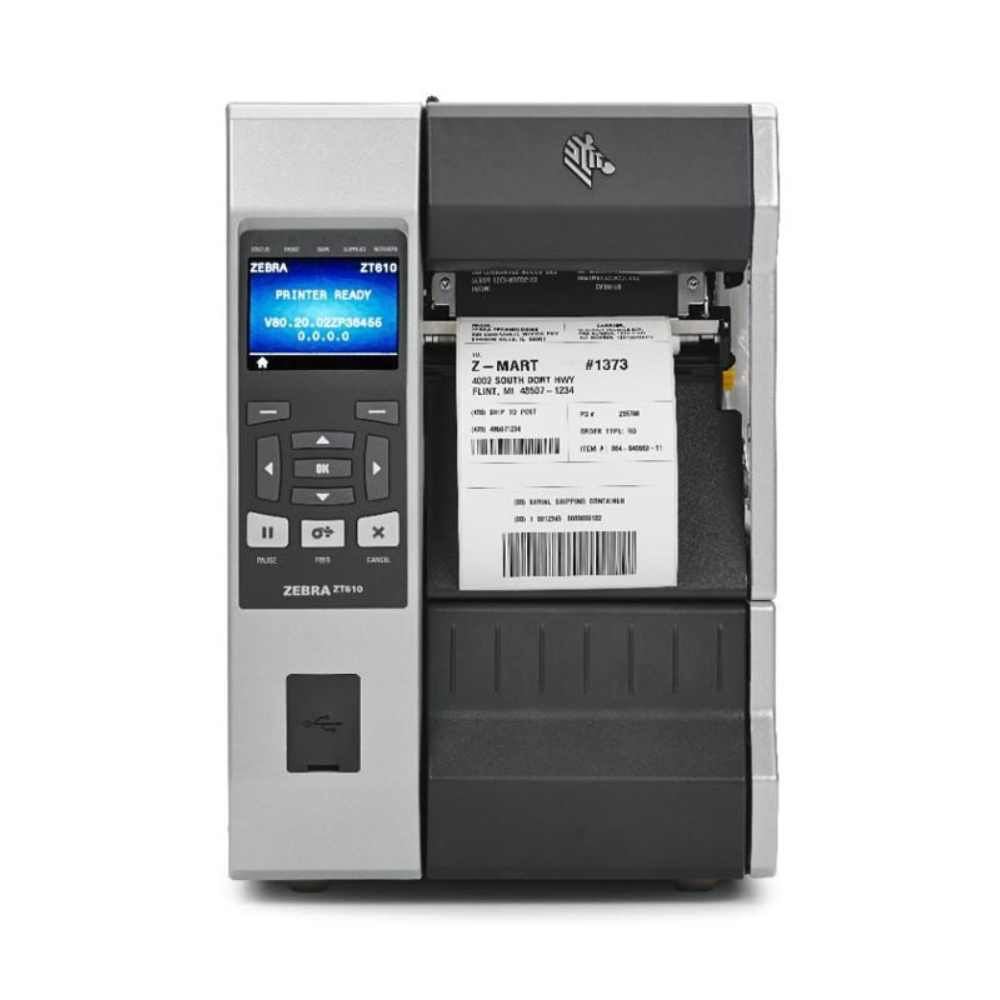

Zebra ZT610 Industrial Barcode Label Printer – 4-Inch, 203/300/600 dpi
The Zebra ZT610 Industrial Label Printer delivers high-performance, precision printing for demanding industrial environments.
Features:
✔ High-Resolution Printing: Up to 600 dpi for sharp barcodes and graphics.
✔ Fast Print Speed: Prints up to 14 inches per second for high-volume tasks.
✔ Rugged Durability: All-metal construction for 24/7 industrial use.
✔ User-Friendly Interface: Full-color LCD display with intuitive controls.
✔ Smart Connectivity: Supports USB, Ethernet, Serial, Bluetooth, and Zebra Link-OS for remote management.
Ideal for manufacturing, logistics, and healthcare applications
The Zebra ZT610 Industrial Label Printer is a high-performance, ultra-durable printing solution designed for mission-critical operations in manufacturing, logistics, and healthcare. Combining advanced technology with industrial-grade durability, the ZT610 ensures precision printing, high-volume output, and seamless integration into enterprise environments.
Standard Features:
- Print Methods: Thermal transfer and direct thermal printing
- Construction: Metal frame and bi-fold metal media cover with enlarged clear viewing window

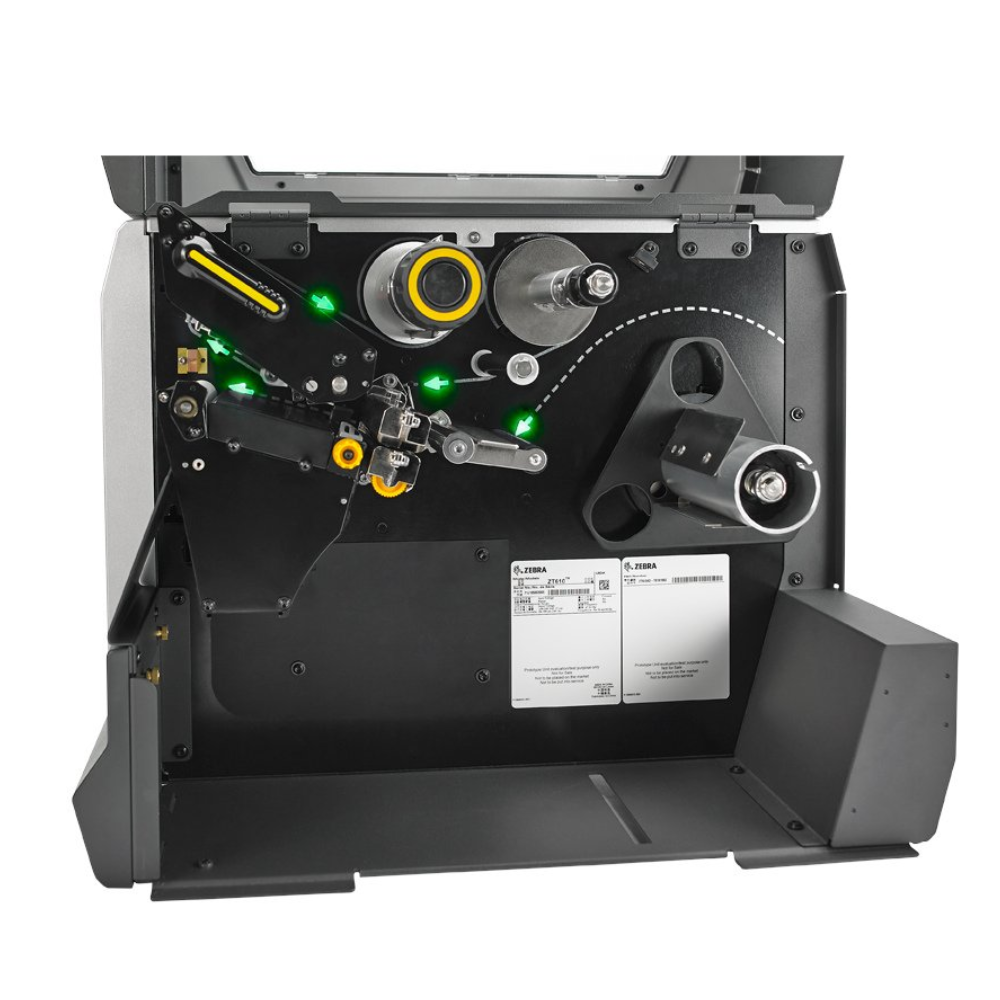

- Side-loading supplies path for simplified media and ribbon loading
- Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality
- Communications: USB 2.0, high-speed, RS-232 Serial, Gigabit Ethernet, Bluetooth 4.0
- Highly visible color display that turns red when the printer is in an error state allows operators to determine printer status from a distance
- Simplified icon menu navigation system categorizes settings into logical groups of functions
With intelligent troubleshooting, predictive maintenance, and superior print accuracy, the Zebra ZT610 delivers unmatched reliability and efficiency for high-demand industrial printing applications.
| Category | Specification |
|---|---|
| Standard Features | 1. Print Methods: Thermal transfer & direct thermal printing. 2. Side-loading supplies path. 3. Thin-film printhead with E3 Element Energy Equalizer. 4. Construction: Metal frame and bi-fold metal media cover with enlarged clear viewing window. 5.Communications: USB 2.0, RS-232 Serial, Gigabit Ethernet, Bluetooth® 4.0. 6. Brightly lit, 4.3 in. full-color touch display with clear navigation and immediate status visibility and support. |
| Physical Characteristics | 1. Dimensions: 505 × 268.2 × 395.68 mm (Height × Width × Depth) 2. Weight: ~22.7 kg (50 lbs) 3. Roll diameter support: up to 203 mm OD roll on 3-inch core |
| Printer Specifications | 1. Resolutions available: 203 dpi / 300 dpi / 600 dpi (for micro-labels) 2. Maximum print width: 4.09″ (104 mm) 3. Maximum print speed: up to 14 ips (356 mm/s) (at the lower dpi settings) 4. Memory: 1 GB RAM + 2 GB Flash Memory |
| Media Characteristics | 1. Media width: 20 mm to 114 mm (0.79″ to 4.5″) 2. Minimum label length: as small as 3 mm for micro-labels in certain modes (600 dpi) 3. Media types supported: continuous, die-cut, black-mark, notched, hole etc. 4. Ribbon: Length up to 450 m; Ribbon/media roll to ribbon ratio ~3:1 |
